Injection Mold Gate and Sprue Design Guidelines for Stable Part Ejection

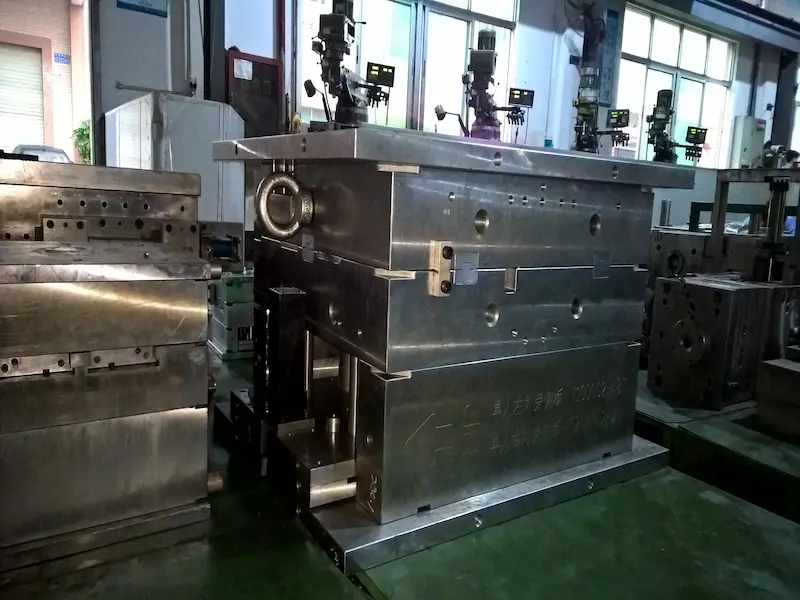

Gate and sprue design play an important role in injection mold performance, part quality, and production stability. A well-designed gating system helps control melt flow, supports balanced filling, and improves part release during ejection. For many injection mold projects, careful attention to gate type, sprue structure, and runner layout is essential for achieving consistent molding results.

1. Gate Design

In many mold applications, the gate should be designed to cut off automatically and drop down efficiently after molding. This helps improve cycle consistency and reduces the need for additional manual trimming.

Common gate types used in injection molds include submarine gates, banana gates, and hot runner systems. These gate styles are often selected based on product geometry, appearance requirements, automation needs, and production volume.

2. Sprue Design

The sprue should be made from hardened steel to resist wear during continuous molding. Materials such as SKD62 with a hardness around HRC52 are commonly used for better durability and long service life.

For sprue design, the entry profile may be flat or formed with an R15.5 circular arc, depending on the molding requirement. The hole diameter should generally be at least 3.5 mm to support smooth material flow. Sprue length should be kept as short as possible to reduce flow resistance and improve cycle efficiency.

When a custom-made sprue is required, hardened materials such as ASSAB 8407, LKM 2767, or LKM 2083 with hardness around HRC52 are often suitable choices. The inner hole should also be polished to improve melt flow and reduce sticking during production.

In addition, the distance between the sprue and the part wall thickness should be controlled carefully. A minimum distance of 1.5 mm is generally recommended to support a practical and safe mold structure.

3. Rotatable Gate Design

For rotatable gate applications, the sub-runner is often designed with a trapezium shape to help improve flow transition and gate function. Positioning is typically controlled by a ball screw located at the bottom, allowing stable movement and accurate gate operation within the mold system.

4. Gate Design Considerations

Gate layout should always be planned carefully to ensure a reasonable flow path and balanced cavity filling. Poor gate placement can lead to cosmetic defects, short shots, warpage, or uneven packing.

Balanced ejection is also an important consideration during gate system design. The mold structure should support safe and even part release, especially for thin-wall or cosmetic parts that may be sensitive to deformation or surface damage.

Conclusion

Proper gate and sprue design is essential for stable injection molding performance. By selecting suitable gate types, using hardened sprue materials, controlling dimensions carefully, and maintaining a balanced layout, manufacturers can improve mold durability, molding consistency, and part ejection reliability.
