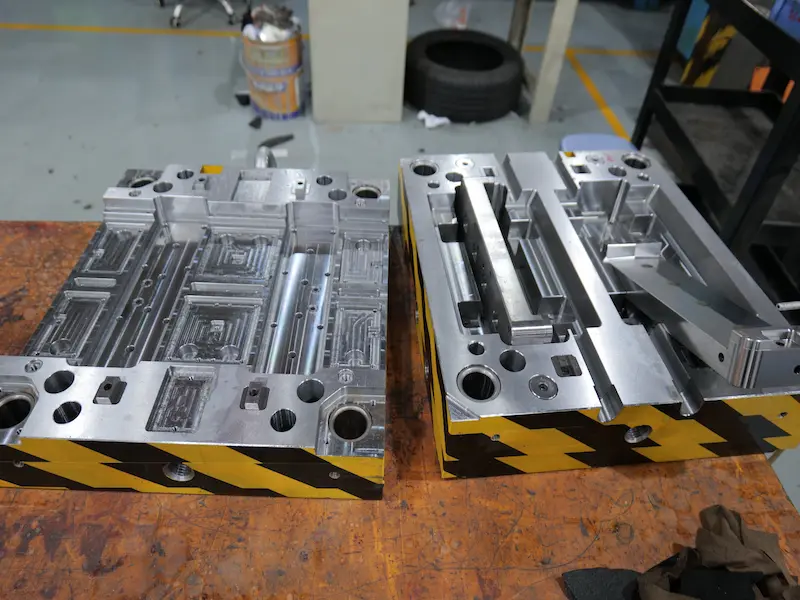

Advantages of Hot Runner Systems in Injection Molding
In injection molding, hot runner systems work together with the mold and play a critical role in improving product quality, production efficiency, and material utilization. For many precision molding applications, hot runners are not just an option, but an important part of achieving stable and economical mass production.
Hot runner technology is especially valuable for thin-wall parts, large plastic components, difficult-flow materials, and multi-cavity molds where filling balance and material waste control are essential.
1. Better Performance for Thin-Wall and Precision Parts
Hot runner systems are highly effective in the injection molding of ultra-thin and high-precision parts, such as mobile phone battery covers and other consumer electronic components. By maintaining melt temperature and improving flow behavior, hot runners help produce parts with better consistency, surface quality, and dimensional accuracy.
2. Improved Flowability for Difficult Materials
For plastics with relatively poor flow characteristics, hot runners can significantly improve melt flow during injection. This helps ensure more stable filling and reduces the risk of short shots, weld lines, and other molding defects caused by insufficient material flow.
By keeping the molten plastic at a controlled temperature inside the runner system, hot runners support smoother production and better process control.
3. Easier Molding of Large Plastic Parts
Some large injection molded parts are difficult to produce using conventional cold runner systems. Examples include:
- Automotive bumpers
- Automotive door panels
- TV rear housings
- Air conditioner enclosures
In these applications, hot runners make the injection molding process more manageable by improving filling balance and reducing the pressure loss that occurs in traditional runner systems.
4. Better Filling Balance in Multi-Cavity Molds
In multi-cavity mold production, hot runners are one of the best solutions for achieving runner balance. Even if a cold runner mold is geometrically balanced, the shear effect of the plastic during flow can still cause inconsistent filling between cavities.
This often results in molded parts with inconsistent weight or quality, especially between inner and outer cavities. Hot runner systems help reduce these differences and improve cavity-to-cavity consistency.
5. Significant Material Savings
One of the biggest economic advantages of hot runners is the reduction of material waste. In traditional cold runner molding, the runner or sprue is often discarded after each cycle. In some cases, the runner weight can be close to the weight of the molded product itself.
By eliminating the cold runner, hot runner systems can reduce wasted raw material and improve material utilization. In many injection molding applications, this can result in raw material savings of approximately 30% to 50%.
6. Reduced Mold Wear and Longer Mold Life
Hot runner systems can also help reduce mold wear and extend mold service life. Compared with thin cold runner molds, hot runner molds often provide a longer operating life because the system reduces repeated thermal and mechanical stress associated with conventional runner removal and handling.
In many cases, the service life of a hot runner mold can be significantly longer than that of a traditional cold runner mold.
7. Higher Requirements for Design and Component Quality
Although the basic structure of a hot runner system may appear relatively simple, each component plays an important role in molding performance. A high-quality hot runner system requires:
- Reliable structural design
- Accurate temperature control
- Suitable material selection
- Proper integration with the mold and plastic product design
Hot runner suppliers should work closely with mold makers and product developers to design and install the most suitable system for the specific molding application.
Conclusion
Hot runner systems offer major advantages in injection molding, including better filling performance, improved cavity balance, easier processing of large or thin-wall parts, reduced material waste, and longer mold life. For many high-volume molding projects, hot runner technology provides both technical and economic benefits.
When properly designed and matched to the product and mold, a hot runner system can significantly improve production stability and overall manufacturing efficiency.
