Key Factors Affecting UHMWPE Pipe Quality

Ultra-high molecular weight polyethylene (UHMWPE) pipes are widely used in mining, chemical processing, dredging, and slurry transportation because of their excellent wear resistance, impact resistance, and long service life. However, producing high-quality UHMWPE pipes requires careful control of raw materials, mold design, and extrusion processing.

1. Raw Material Selection

The most important factor in UHMWPE pipe raw materials is molecular weight. In theory, higher molecular weight provides better wear resistance. However, wear resistance is only one aspect of pipe performance. Pressure resistance, toughness, dimensional stability, and long-term durability must also be considered.

Simply using higher molecular weight materials does not automatically guarantee better overall pipe quality. Final performance depends on the combined effect of material grade, mold design, extrusion equipment, and process control.

UHMWPE materials have very low flowability during extrusion. In a molten state, the material behaves more like an elastomer and is difficult to process. This makes extrusion much more challenging than with conventional polyethylene materials.

To improve extrusion performance, the screw design is especially important. A suitable extruder for UHMWPE pipe production usually features:

• Full-flight screw design
• Shallow screw channels
• Small screw angle
• High screw thrust force

The purpose of this design is to reduce material adhesion to the screw and barrel while improving extrusion stability and pressure control.

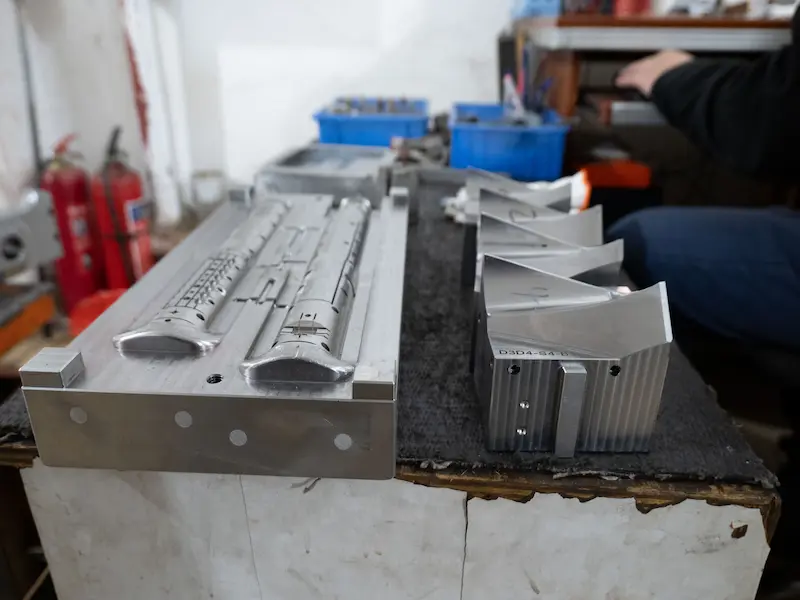

2. Mold Design

Mold design is one of the most critical factors affecting UHMWPE pipe quality. Because UHMWPE materials are difficult to extrude and require high processing pressure, mold structure has a direct impact on compactness, pressure resistance, dimensional stability, and surface quality.

Poor mold design can lead to several common problems:

• Unreasonable compression ratio, resulting in poor compactness and low mechanical strength
• Unsmooth flow channels, causing excessive material degradation
• Poor plasticization and fusion, leading to cracking
• Unstable extrusion and difficult production control
• Thin-wall pipe deformation and eccentricity

A well-designed UHMWPE pipe mold should provide:

• Stable extrusion pressure
• Smooth material flow
• Good compactness
• Reduced raw material degradation
• Consistent pipe appearance
• Stable production even when ambient temperatures fluctuate

Since UHMWPE pipe production is highly dependent on practical experience, mold optimization often plays a decisive role in achieving reliable long-term production quality.

3. Extrusion Process Control

The extrusion process is equally important for maintaining the internal properties and dimensional stability of UHMWPE pipes.

Different molecular weight materials require different processing temperatures. For UHMWPE materials with a molecular weight of approximately 2.5 to 5 million, the plasticization temperature is generally around 240°C.

• If the temperature is too low, plasticization will be insufficient, and the pipe surface may appear rough or defective.
• If the temperature is too high, the pipe surface may improve, but material degradation will increase.

Each material grade requires its own optimized processing conditions. In practice, once a mold and raw material combination is selected, the extrusion temperature and processing parameters should be fine-tuned through testing and production experience.

Conclusion

Producing high-quality UHMWPE pipes requires a balanced combination of raw material selection, mold design, and extrusion process control. Among these factors, mold design often has the greatest impact because it directly affects material flow, compactness, dimensional stability, and overall product performance.

With the right combination of material, tooling, and process optimization, UHMWPE pipes can achieve excellent wear resistance, high mechanical strength, and stable long-term performance in demanding industrial applications.
