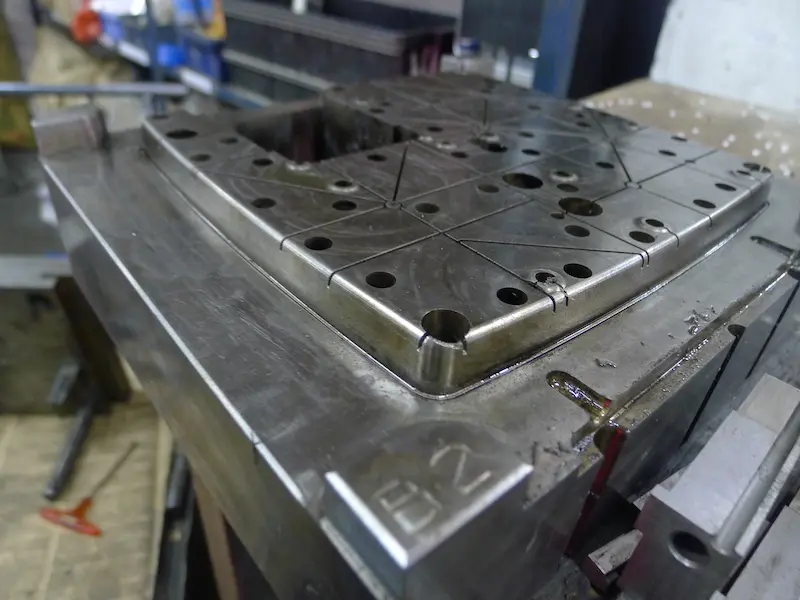

Benefits of Hot Runner Systems in Three-Plate Injection Molds

Hot runner systems are widely used in injection mold design to improve melt flow balance, reduce material waste, and increase molding efficiency. Compared with traditional cold runner systems, hot runners offer clear advantages in the production of large plastic parts, thin-wall products, and components with complex gating requirements.

1. Mold Structure Advantages

In oversized plastic products, hot runner systems are often required to achieve balanced plastic flow. This is especially important for products such as automotive interior parts, appliance housings, and large plastic components that require multiple gates or sequential valve gating.

When the gate position is not aligned with the center of the injection molding machine, hot runner feeding can simplify the mold structure, improve molding stability, shorten cycle time, and eliminate cold runner waste.

Traditional three-plate molds using cold runners require the mold plate to move over a relatively large distance to remove the runner system. This repeated movement increases wear on the mold and may reduce mold life. In many cases, the opening stroke required to remove the runner is even larger than the stroke required to eject the molded part.

With a hot runner system, there is no need to remove a solidified runner, so the mold opening distance can be reduced. This may allow manufacturers to use a smaller injection molding machine compared with an equivalent cold runner mold.

Hot runner systems are commonly used in the following situations:

• When side gating requires a long vertical runner path.
• When excessive cold runner length would create material waste or molding issues.
• When molding large products with offset or eccentric gate positions.
• When a three-plate mold would otherwise require a large mold opening stroke.
• When processing materials with high viscosity, low viscosity, or high molding temperatures.

Hot runner systems are also suitable for specialized molding applications such as metal powder injection molding, ceramic powder molding, plastic magnets, plastic bearings, and thermoplastic rubber molding.

2. Plastic Material Savings

One of the most significant advantages of hot runner systems is the reduction of plastic waste. In a traditional cold runner mold, every molding cycle creates a runner or sprue that becomes scrap unless it is recycled.

In some cases, the cold runner may account for a large percentage of the total shot weight. Although runner scrap can often be reground and reused, the process is limited by contamination risk, recycling ratio restrictions, quality concerns, and handling costs.

Because a hot runner keeps the plastic melt in a heated flow channel, there is no cold runner generated during normal production. This allows more material to be converted directly into finished products, reducing waste and improving material utilization.

Hot runner systems are especially useful in high-speed injection molding applications. High-speed molding improves production efficiency and is often necessary for thin-wall products such as cups, containers, and packaging components.

In stack mold applications, hot runner systems can further improve output. For thin-wall and high-volume products such as CD cases, the combination of hot runner technology and increased cavity count can significantly increase throughput.

3. Environmental Protection and Production Efficiency

Because hot runner systems do not produce runner scrap during every molding cycle, they help reduce material waste and improve environmental performance. Less waste means fewer raw materials are consumed and less regrind handling is required.

In cold runner production, scrap material often needs to be sorted by resin type and color, dried, stored, and managed separately before reuse. This increases labor, handling time, and production complexity. In addition, runner grinding creates noise and dust that can negatively affect the working environment.

Hot runner systems eliminate many of these extra steps and help create a cleaner, more efficient molding process. They also improve process stability by allowing better control of each gate point in multi-gate molds.

Advantages of Using Hot Runners in Three-Plate Injection Molds

• No cold runner removal is required, reducing mold opening stroke.
• Plastic flow is more balanced during injection.
• Each gate point can be controlled more precisely.
• Plastic waste and labor cost are reduced.
• Molding becomes easier for large parts, thin-wall products, and difficult-flow materials.
• Cycle time can be shortened to improve production efficiency.

Conclusion

Hot runner systems provide major advantages for three-plate injection molds in terms of mold structure, material savings, environmental performance, and overall production efficiency. They are especially suitable for large plastic products, multi-gate molds, thin-wall parts, and engineering materials that are difficult to process with cold runners.

By reducing waste, improving flow balance, shortening mold opening stroke, and simplifying runner handling, hot runner systems can help manufacturers achieve more stable and cost-effective injection molding operations.
