Common Mold Failure Modes and Their Causes

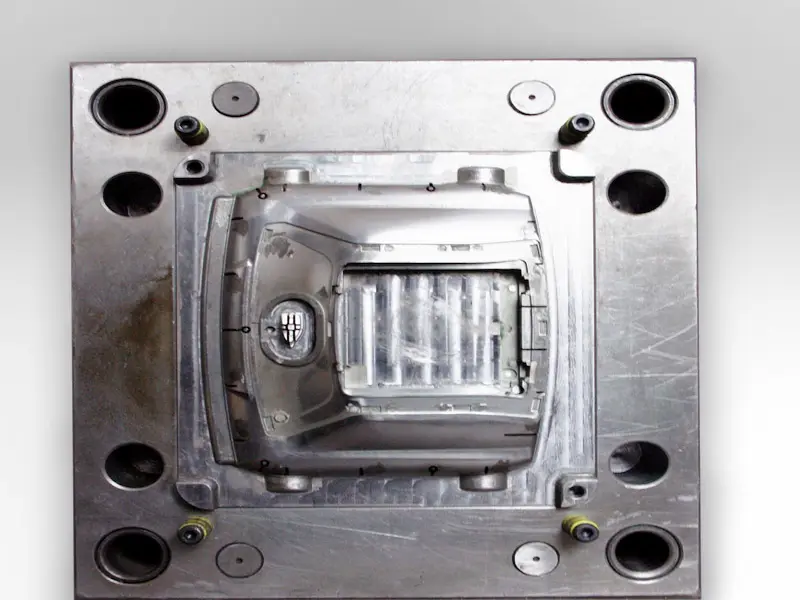

Mold failure is one of the main factors that affects production stability, product quality, and tooling cost. In actual manufacturing, mold damage is usually not caused by a single issue. Instead, it often results from material limitations, improper heat treatment, overload, wear, fatigue, or a combination of several factors.
From current manufacturing practice, mold failure can generally be divided into five main categories: plastic deformation failure, wear failure, fatigue failure, cold and hot fatigue failure, and failure caused by combined factors.
1. Plastic Deformation Failure
Plastic deformation failure usually occurs when the mold material does not have sufficient strength or when the heat treatment process is not properly controlled to achieve the best balance of hardness and toughness.
Improper mold use may also lead to local overloading, while high operating temperatures in hot-work molds can cause thermal softening and plastic deformation. Once the mold shape changes, it can directly affect the dimensional accuracy and surface quality of the product.
2. Wear Failure
Wear failure is mainly caused by friction between the mold surface and the workpiece or material being processed. The actual wear process depends on many factors, including contact pressure, working temperature, deformation speed of the blank, and lubrication conditions.
For hot-work molds, the problem becomes more complex because the cavity surface may soften at high temperature, while oxide scale on the workpiece can also act as an abrasive. Wear failure typically leads to cavity erosion, reduced forming accuracy, and shorter mold life.
3. Fatigue Failure
Fatigue failure is caused by repeated cyclic loading combined with stress concentration. Even when the load on the mold is lower than the material yield strength, localized stress concentration can still create microcracks over time.
Because molds often operate under high strength and low plasticity conditions, these small cracks can gradually expand under repeated loading until fatigue fracture occurs. Fatigue failure is one of the most common reasons for sudden mold damage in production.
4. Cold and Hot Fatigue Failure
Cold and hot fatigue failure is especially common in hot-work molds. During operation, the mold surface may repeatedly heat up to a very high temperature when it contacts hot material, then cool rapidly after release or during coolant spraying.
This repeated heating and cooling cycle generates strong thermal stress on the mold surface. Over time, the thermal stress is released in the form of thermal fatigue cracks. High-temperature oxidation, coolant corrosion, and friction with the hot workpiece can further accelerate this failure process.
5. Failure Caused by Combined Factors
In actual production, mold working conditions are often very complex. Several failure mechanisms may appear at the same time in a single mold, such as wear combined with thermal fatigue, or plastic deformation combined with cracking.
Once multiple types of damage occur together, they often reinforce each other and accelerate overall mold failure. For this reason, mold analysis should not focus on only one defect, but instead consider material selection, heat treatment, operating conditions, lubrication, cooling, and structural design as a complete system.
Conclusion
Understanding the main mold failure modes is essential for improving tool life and production reliability. By optimizing mold material, heat treatment, structural design, lubrication, and process control, manufacturers can reduce mold damage, lower maintenance cost, and improve product consistency.
