How Wire EDM Alters Mold Surface Integrity and Service Life

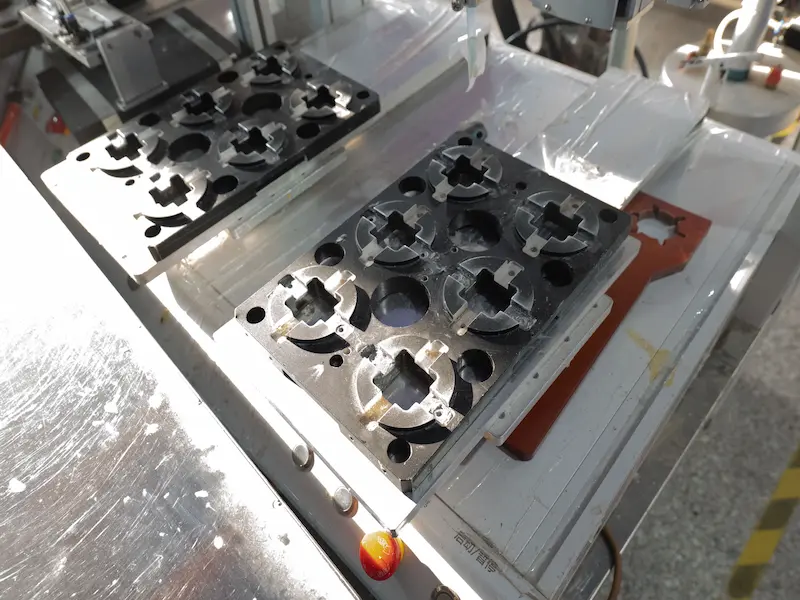

Medium-speed wire EDM is a machining process that uses the thermal effect of instantaneous electrical discharge to melt and evaporate workpiece material until the required dimensions are achieved. Because the working fluid used in wire EDM is usually a dielectric liquid, the process is also accompanied by a certain degree of electrolysis during machining.
The combined effects of discharge heat and electrolysis often create an altered surface layer on the machined surface. This surface layer can reduce hardness, introduce microcracks, and negatively affect the long-term performance of mold components. For precision dies, these changes may lead to early wear, unstable blanking clearance, chipping at the cutting edge, and reduced tool life.
How the Altered Surface Layer Forms in Wire EDM
During wire EDM, the discharge energy generates extremely high local temperatures on the surface of the workpiece. A small portion of the metal melts and even vaporizes. As the discharge ends, the molten material rapidly cools and solidifies again, forming a recast or altered layer on the surface.
Because dielectric working fluids are used in the process, electrochemical effects may also occur during machining. The interaction of thermal damage and electrolysis changes the surface condition of the workpiece and creates a layer with different metallurgical characteristics from the base metal.
Effects on Mold Performance
The altered surface layer created by wire EDM can significantly affect mold performance. In practical use, the machined surface may show reduced surface hardness and the presence of microcracks. These defects can make the mold more vulnerable to premature wear during service.
For blanking dies and other precision mold components, this can directly affect die clearance stability. It can also increase the risk of edge chipping and shorten the service life of the mold. For this reason, surface integrity after wire EDM is an important factor in mold maintenance and durability.
White Layer Formation on Carbon Steel
When carbon steel is machined by wire EDM, the molten and resolidified surface layer often appears as a white layer in metallographic photographs. This altered layer usually includes both the resolidified molten layer and the heat-affected zone.
The white layer is completely different from the base metal in structure. It generally appears as a dendritic quenched cast structure and does not bond as strongly to the underlying material as the original steel matrix.
This layer is mainly composed of martensite, a large amount of fine retained austenite, and some carbides. Because of this metallurgical transformation, the altered surface may behave differently from the base metal in hardness, toughness, and crack resistance.
Why the Altered Layer Matters in Mold Manufacturing
- It can reduce effective surface hardness in the machined zone
- It can introduce microcracks that weaken edge durability
- It can accelerate early wear of mold cutting edges
- It can affect blanking clearance consistency
- It can increase the risk of chipping and shorten mold life
Conclusion
Medium-speed wire EDM is an efficient and precise machining method, but it also creates an altered surface layer due to thermal discharge and electrolysis. On carbon steel, this layer often appears as a white layer with a transformed metallographic structure that differs greatly from the base metal. Because this altered layer can reduce hardness, create microcracks, and shorten mold life, it must be considered carefully when wire EDM is used in precision mold manufacturing.
