Polishing Methods for Precision Stamping Dies

Polishing is an important finishing process in precision stamping die manufacturing. It serves two main purposes: improving the surface brightness and precision of the die, and making the mold easier to release during production.

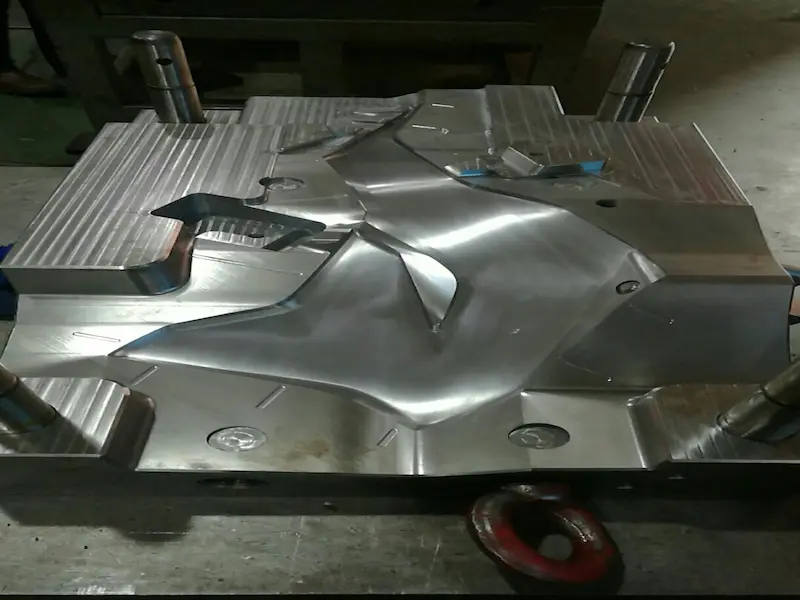

A properly polished die surface can reduce friction, improve part appearance, and support stable forming performance. In practical mold making, polishing is usually carried out step by step, from rough polishing to fine mirror finishing.

Basic Polishing Process for Precision Stamping Dies

The polishing process generally starts with a coarse oil stone to remove machining marks left by milling, grinding, or EDM. After that, a finer oil stone is used to refine the surface further. Fine sandpaper is then applied to smooth the polished area, and finally polishing paste or polishing compound is used to create a bright, mirror-like finish on the cavity surface.

1. Mechanical Polishing

Mechanical polishing is the most commonly used polishing method for precision stamping dies. It removes small surface peaks and irregularities through cutting action and slight plastic deformation of the surface layer.

Common tools for mechanical polishing include oil stone strips, sandpaper, wool wheels, and polishing compounds. In many cases, the process is performed manually by experienced technicians. For special shapes such as rotating or curved surfaces, auxiliary tools like rotary tables may be used.

For dies that require extremely high surface quality, ultra-fine grinding and polishing methods can be used. In this process, a dedicated polishing tool works at high speed against the workpiece surface in a polishing liquid containing abrasives. This method can achieve very low surface roughness and is often used for optical molds and other high-precision applications.

2. Electropolishing

Electropolishing is an electrochemical polishing method that smooths the die surface by selectively dissolving microscopic high points on the material surface.

Compared with ordinary chemical polishing, electropolishing offers better control and typically produces a more uniform finish. The process usually includes two stages:

• Macro-leveling: Surface roughness is reduced as dissolved material diffuses into the electrolyte.
• Micro-brightening: Surface brightness increases and a smoother finish is achieved through controlled anodic action.

Electropolishing is suitable for improving both surface smoothness and visual quality, especially on more complex die surfaces.

3. Ultrasonic Polishing

Ultrasonic polishing places the workpiece in an abrasive suspension and uses ultrasonic vibration to drive abrasive particles against the surface. This creates a polishing effect with relatively low macroscopic force, which helps reduce the risk of deformation in delicate die components.

Ultrasonic polishing is especially useful for precision work, although the equipment and tooling are more complex than standard manual polishing methods.

In some applications, ultrasonic polishing can also be combined with chemical or electrochemical polishing. Ultrasonic vibration helps agitate the solution, remove dissolved material from the surface, and improve the uniformity of the polishing process.

Conclusion

Different polishing methods are suitable for different die surface requirements. Mechanical polishing is widely used for general precision stamping dies, while electropolishing and ultrasonic polishing are valuable for applications that require finer finishes, more uniform surfaces, or reduced polishing force.

By selecting the appropriate polishing method and controlling each finishing step carefully, manufacturers can improve die surface quality, enhance release performance, and support more reliable precision stamping production.
