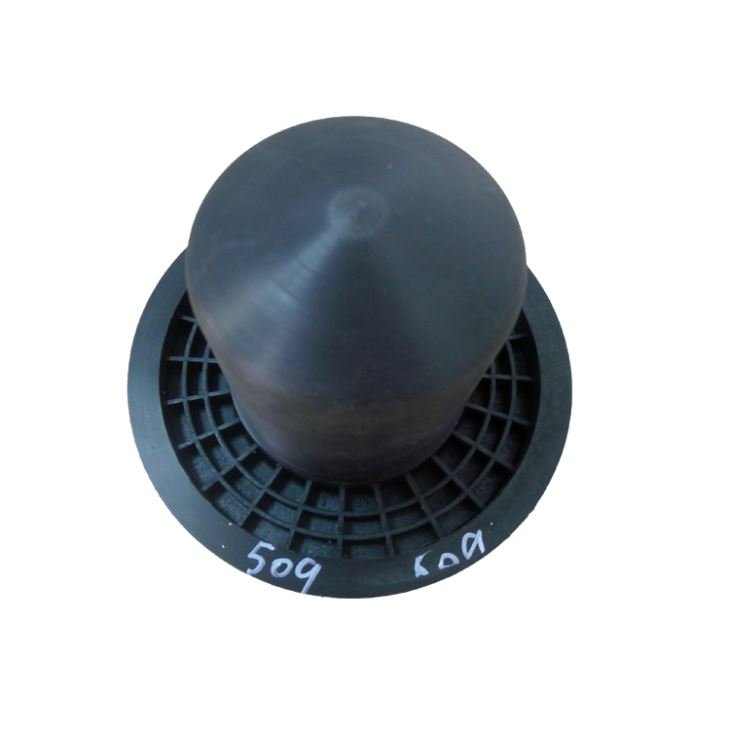

PVDF is an engineering fluoropolymer used in applications requiring chemical resistance, corrosion resistance, purity, and stable performance. Pump casings are one example where material selection can be critical because the component may remain in continuous contact with aggressive liquids.

Why PVDF Is Used for Pump Components

PVDF provides good resistance to many chemicals and maintains useful mechanical properties across a wide range of operating conditions. It is therefore used in chemical processing, water treatment, semiconductor equipment, laboratory systems, and specialized industrial pumps.

Pump Casing Design Considerations

A pump casing may include internal flow passages, sealing surfaces, mounting features, threaded areas, ribs, bosses, and connections to other components.

These features must be evaluated for wall thickness, dimensional stability, assembly, sealing, and manufacturability.

Injection Molding of PVDF

PVDF can be injection molded for production quantities, but processing conditions require careful control. Material preparation, melt temperature, mold temperature, filling conditions, cooling, and part geometry can influence dimensional stability and surface quality.

The mold design should provide suitable gating, venting, cooling, and ejection while avoiding unnecessary stress concentration in the finished component.

Dimensional and Sealing Requirements

Pump components often include sealing interfaces and assembly dimensions that directly affect leakage performance. Critical diameters, flatness, mating surfaces, and sealing grooves should therefore be identified during DFM and inspection planning.

Material Handling

Correct material identification and controlled processing are important when chemical resistance is part of the product requirement. Regrind, contamination, moisture, and inappropriate processing conditions may affect final performance.

Quality Control

Inspection can include dimensional measurement, visual examination, assembly checks, and application-specific leak or pressure testing depending on the product requirements.

Critical dimensions should be defined on the engineering drawing so that the manufacturing and inspection teams can focus on the features that affect pump performance.

From Tooling to Production

A successful PVDF pump casing project requires coordination between material selection, product design, mold design, injection molding parameters, inspection, and assembly requirements.

Considering these factors before mold manufacturing helps reduce production problems and supports stable long-term manufacturing.
