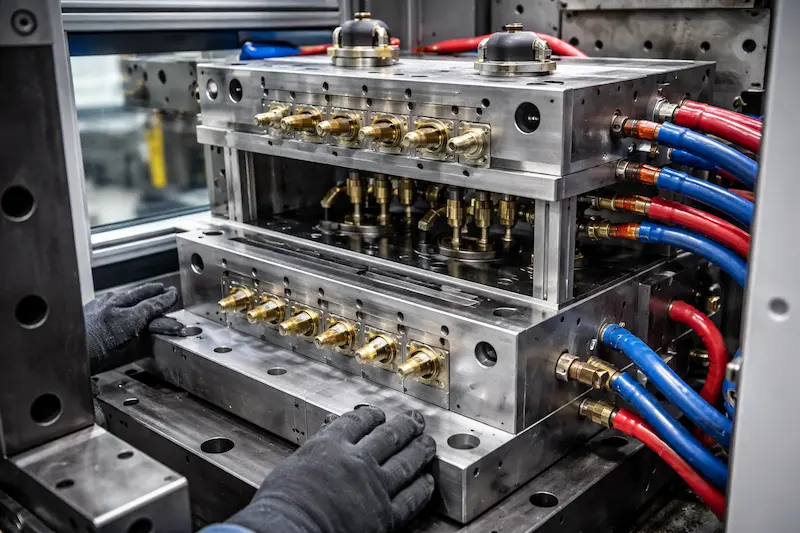

Benefits of Stacked Hot Runner Molds in Injection Molding

Compared with conventional single-face injection molds, stacked hot runner molds can significantly improve production efficiency by distributing molten plastic across two separate parting surfaces. This design allows manufacturers to produce more parts without greatly increasing mold size or machine requirements.

1. Higher Production Output

Stacked hot runner mold technology increases production capacity by adding a second layer of cavities within the same mold footprint. Instead of enlarging the mold or using a bigger injection molding machine, the second cavity layer is placed parallel to the first.

Both cavity layers are filled, packed, and cooled at the same time, which allows the mold to produce more parts during each cycle. In many cases, stacked molds can more than double the production output compared to traditional single-face molds.

Because the filling, holding, and cooling times remain nearly the same, the additional production capacity is achieved without a significant increase in cycle time.

2. Lower Part Cost

The cost of molded parts is closely related to the operating hours and clamping tonnage of the injection molding machine. Stacked hot runner molds require significantly less clamping force than a traditional single-face mold with the same total number of cavities.

For example, an 8+8 cavity stacked mold can replace a conventional 16-cavity mold while using only about half of the required clamping tonnage. A standard 16-cavity single-face mold may require a 600-ton injection molding machine, while an 8+8 stacked mold can often run on a 300-ton machine.

This reduction in machine size lowers machine operating costs, energy consumption, and floor space requirements while maintaining the same production output.

3. Better Use of Existing Equipment

Stacked hot runner molds allow manufacturers to maximize the use of existing injection molding equipment. Instead of investing in larger machines, companies can increase productivity using smaller presses with lower operating costs.

This approach is especially useful for high-volume production programs where improving output and reducing part cost are critical.

4. Improved Manufacturing Efficiency

By combining higher output with smaller machine requirements, stacked hot runner molds offer a more efficient production solution. Manufacturers can reduce hourly machine costs, improve production capacity, and achieve a lower cost per part.

For large-volume plastic injection molding projects, stacked mold technology can provide substantial economic and production advantages.
