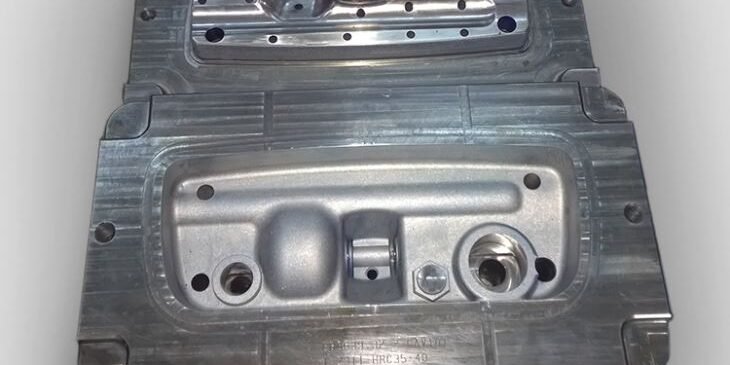

Plastic Injection Tooling

Part NamePlastic Injection Tooling for Export
Injection MaterialABS, PP, PC, PP+GF, PA, PA+GF, PS, POM, PMMA, PC, etc.
Steel of Cavity&Core

Depends on Product, we help customer to choose the suitable material.

Commonly used material are P20,NAK80,718,1.2344,etc.

Steel of Mold BaseDepends on Product, we will help customer to choose the suitable material.
Commonly used material is S50C.
Hardness of Cavity & CorePre-Hardness Steel: HRC 32 ~ 36,
Heat Treatment Steel: HRC 48~50°
Core pulling or Ejection systemDepends on the Product.
Commonly used : Angel pin, oil cylinder, motor,stripping plate, ejector pin, etc.
Surface Finish

Depends on the product.

Commonly used: Texture Hatching, EDM Hatching, Polishing, Diamond Polishing,etc.

Mold Life300,000-1,000,000shots

1. Cold Runner,

2. Hot Runner.

Machine CenterCNC milling machine, CNC Lathing machine, EDM, NC milling & lathing machine, etc.
R & DWe offer customers the drawings for products and mold design.
Also we provide extra service such as Reversing Engineering Drawing, etc.
We can work with 2D/3D drawings or with provided samples.




1. Q: Which kind of product can you do?

A: Plastic injection molding and mass production for plastic parts.

2.  Q: Which kind information need for quotation?

A: 1) Sample photo with size or 2D/3D design

2) Product material

3) The quantity

4) Runner type, cold or hot

5) Mould steel type, P20, 718, 2738, H13, S136, 2316, an so on.

3.  Q: I have no 3D drawing, how should I start the new project?

A: You can supply us a sample or tell me your idea,we will help to finish the 3D drawing design.

4. Q: How long will be the injection mold finished?

A: Usually it will take about one month to finish the mold.
